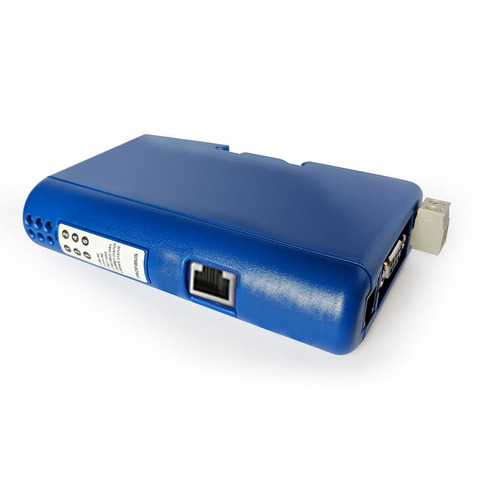

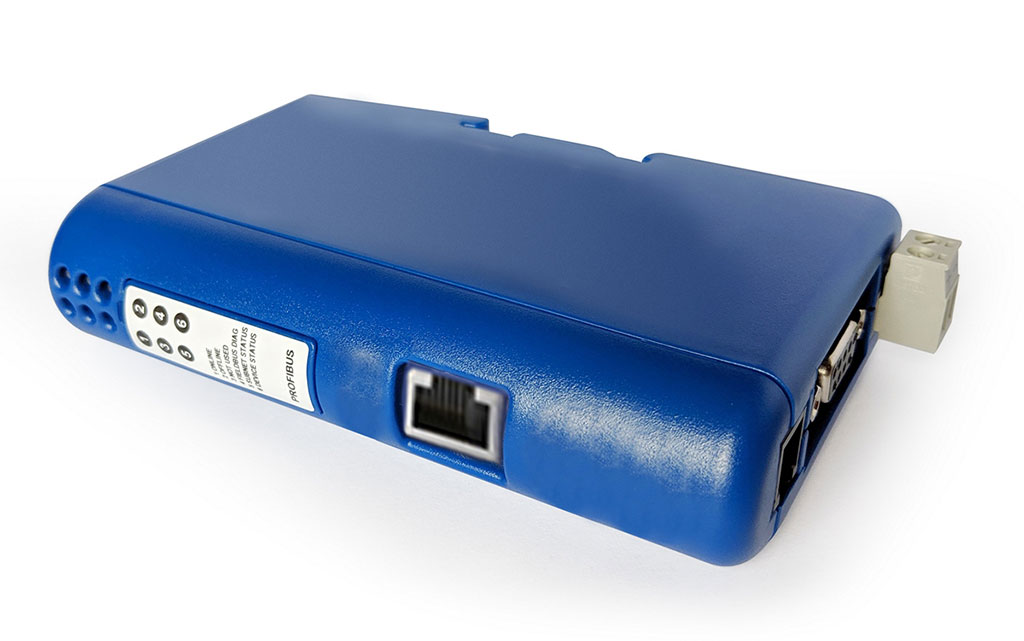

MultiCOM 421

PROFINET control system

The MultiCOM 421 connects a Riello UPS to a PROFINET-IO Network. In industrial environments, the Gateway integrates UPS management and monitoring into a control system. The Gateway uses the PROFINET control system – one of the most popular used for communicating between devices such as automation control systems and distributed I/O hardware.

Request Information »
  • Complete PROFINET-IO communication
  • Max 216 bytes of Input and 6 bytes of Output data
  • Up to 64 slots / 1 sub slot
  • Cyclic data exchange (10 ms cycle time)
  • Acyclic Data exchange (Record Data Requests)
  • Baud rate 10/100 Mbit/s
  • TCP/IP Configuration via DCP (Discovery and Configuration Protocol)
  • PROFINET uplink configuration via .GSDML file
  • 1x RJ45 network connector
